NanoBridge M5
Test linky mezi routery unreal a bdbriza je na vzdálenost 285m. Testy netperfem ukázaly
propustnost 121Mbps (90 a 31Mbps). Za tu cenu to nemá chybu.
[root@bdbriza ~]# netperf -H 10.32.0.136
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.32.0.136 (10.32.0.136) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.06 93.50
unrealrouter:~# netperf -H 10.32.0.145
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.32.0.145 (10.32.0.145) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.02 93.93
Full Duplex
[root@bdbriza ~]# netperf -H 10.32.0.136 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.32.0.136 (10.32.0.136) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.52 90.17
unrealrouter:~# netperf -H 10.32.0.145 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.32.0.145 (10.32.0.145) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.13 31.09

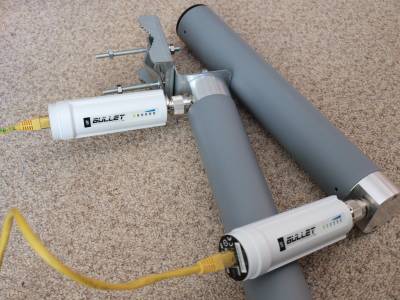

Bullet M5
Testy na stole
jsem si zkusil pro MCS7, MCS5 a MCS4. Testoval jsem mezi PIV stroji pomocí netperfu a výpisy jsou níže.
Vždy jsem pustil přenos dat z jedné, pak z druhé a pak z obou stran. Antény nn17 od antenna.cz.
Pro MCS7 omezoval rychlost ethernet a při full duplex přenosu to jelo zhruba 56Mbit (62.66Mbit a 51.17Mbit).
MCS 7
Strana A
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.19 94.04
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.22 62.66
Strana B
[root@czfcentos ~]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.08 93.89
[root@czfcentos ~]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.15 51.17
MCS 5
[root@simdell ~]# netperf -H 10.33.31.6 -l 10
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.28 86.96
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.33 54.98
[root@czfcentos etc]# netperf -H 10.33.30.158 -l 10
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.05 92.62
[root@czfcentos etc]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.17 44.44
MCS 4
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.95 32.96
[root@simdell ~]# netperf -H 10.33.31.6 -l 10
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.32 61.95
[root@czfcentos etc]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.14 36.84
[root@czfcentos etc]# netperf -H 10.33.30.158 -l 10
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.11 66.62

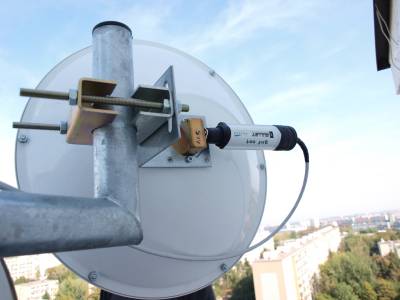

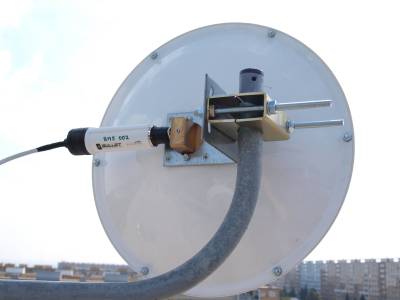

Testy v reálném spoji 290m
jsem si zkusil jen pro MCS7. Testoval jsem mezi PIV stroji pomocí netperfu a výpisy jsou níže.
Vždy jsem pustil přenos dat z jedné, pak z druhé a pak z obou stran. Antény jrc-24 od jirous.com.
Pro MCS7 omezoval rychlost ethernet a asi i switch PSW-205 a při full duplex přenosu to jelo zhruba 51Mbit (50.23 a 51.90).
Šířka kanálu je 40Mhz a na konzoli to píše Bit Rate:150 Mb/s. Zabírá to tedy dvakrát více pásma než "Áčko" a, velmi zjednodušene, máme tedy kanály 100 108 116 (124 radar) 132 a 140 a tedy pět nepřekrývajících se kanálů v pásmu 100 až 140.
Zkusil jsem nastavit i kanál, který na té střeše máme už použitý a nebylo to poznat ani na jednom z těch linků. Asi se to ale nijak moc nerušilo protože antény míří každá jinam a přeslech tedy asi není "velký".
Přehled MCS je na wireless.agilent.com nebo lokálně.

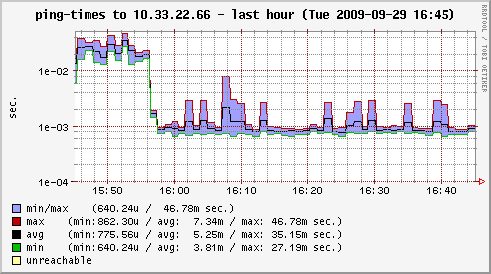

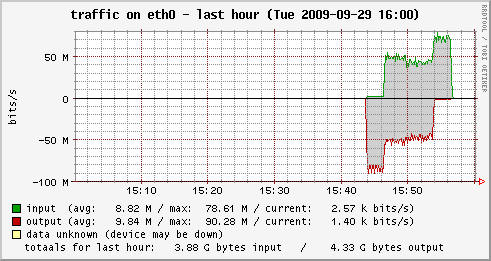

jabtoc-sluknovska

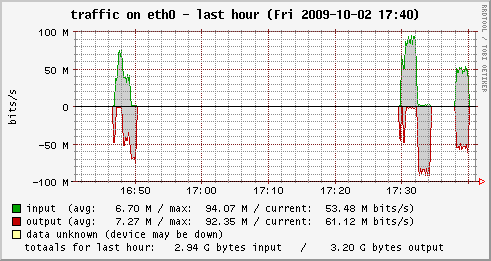

[root@sluknovska ~]# netperf -H 10.33.4.2
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.4.2 (10.33.4.2) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.01 88.53
[root@sluknovska ~]# netperf -H 10.33.4.2 -l 600
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.4.2 (10.33.4.2) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 600.05 50.23
[root@hasit network-scripts]# netperf -H 10.33.4.1
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.4.1 (10.33.4.1) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.02 79.79
[root@hasit network-scripts]# netperf -H 10.33.4.1 -l 600
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.4.1 (10.33.4.1) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 600.01 51.90
[root@hasit network-scripts]#

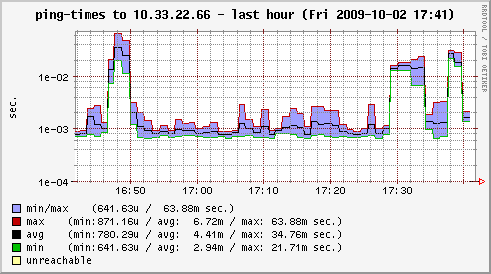

Latence spoje je asi 30ms při plném zatížení.
Zapnutý AirMax na AP sníží propustnost spoje.
[root@sluknovska ~]# netperf -H 10.33.22.65
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.22.65 (10.33.22.65) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.02 47.70
[root@hasit ~]# netperf -H 10.33.22.66
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.22.66 (10.33.22.66) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.01 61.89

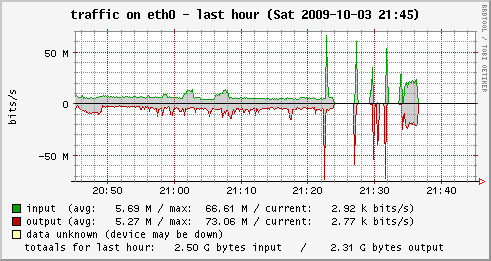

Pro šířku pásma 20MHz je propustnost 20.5Mbit full duplex.
[root@sluknovska ~]# netperf -H 10.33.22.65
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.22.65 (10.33.22.65) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.06 32.65
[root@sluknovska ~]# netperf -H 10.33.22.65 -l 120
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.22.65 (10.33.22.65) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 120.11 20.63
[root@hasit ~]# netperf -H 10.33.22.66
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.22.66 (10.33.22.66) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.03 36.59
[root@hasit ~]# netperf -H 10.33.22.66 -l 120
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.22.66 (10.33.22.66) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 120.03 20.50
Vlany
http://www.ubnt.com/forum/showthread.php?t=14568&page=9
You can still use a management VLAN for the M series though.
On the CPE:
If in bridge mode add the following to the /etc/persistant/rc.poststart file
vconfig add br0 25
ifconfig br0.25 10.200.6.2
netmask 255.255.0.0 up route add default gw 10.200.1.1 br0.25
(Its fairly self explanatory search other posts. Also google the linux commands vconfig, ifconfig and brctl for more info)
save and reboot :
cfgmtd -w -p /etc/
reboot
You will also have to do something similar on the base station that the CPE is connected to allow the VLAN to pass-through that.

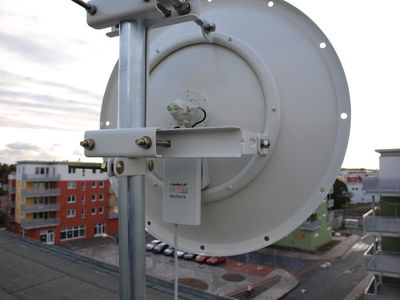

Rocket M5
První testy na stole ukazují pro MCS15 kolem 74Mbit full duplex. I na malou vzdálenot záleží na anténách
a s pendreky dodávanými s kartou WL-760 to nejede vůbec. První test měl na jedné straně dvě nn17 a
na druhé nn-12 DUPLEX.
MCS15
[root@czfcentos ~]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.10 75.25
[root@czfcentos ~]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.06 90.28
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.17 73.58
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.16 94.06
MCS12
[root@czfcentos ~]# netperf -H 10.33.30.158
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.05 93.92
[root@czfcentos ~]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.18 63.54
[root@simdell ~]# netperf -H 10.33.31.6
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.15 93.94
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.19 66.20
MCS14
[root@simdell ~]# netperf -H 10.33.31.6
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.22 58.46
[root@simdell ~]# netperf -H 10.33.31.6 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.31.6 (10.33.31.6) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.17 66.77
[root@czfcentos ~]# netperf -H 10.33.30.158
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.05 91.01
[root@czfcentos ~]# netperf -H 10.33.30.158 -l 60
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.30.158 (10.33.30.158) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 60.07 70.11

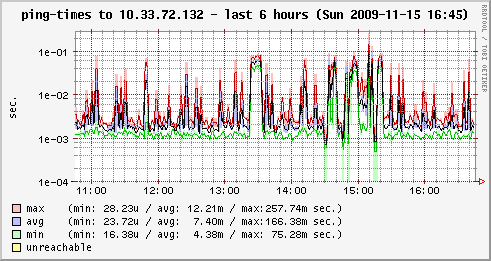

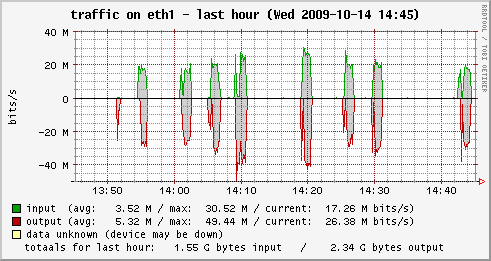

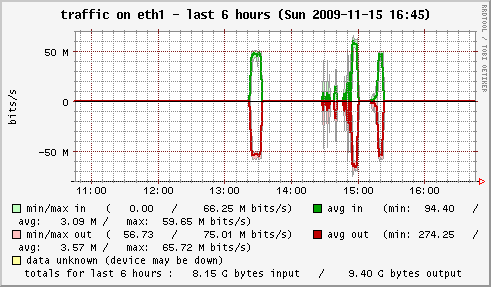

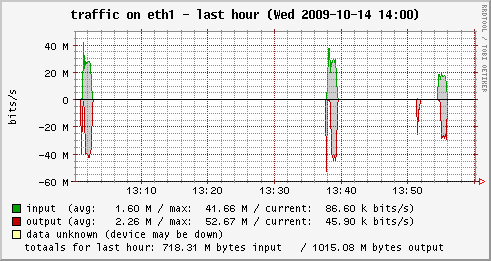

Testy v reálném spoji 4100m
Antény RocketDish-5G30
Kanal 100
-56dB na obou stranach
MCS12
kbely > prosek
46.27 28.58
prosek > kbely
53.61 42.58
MCS15
kbely > prosek
26.98 16.80
prosek > kbely
32.73 27.85
Kanal 108
MCS12
kbely > prosek
30.53 24.13
prosek > kbely
49.88 36.63
MCS15
kbely > prosek
30.64 19.72
prosek > kbely
32.98 31.69
Kanal 64
AP -61dB Klient -65dB -60dB
MCS12
kbely > prosek
43.93 26.88
prosek > kbely
51.89 40.31
MCS15
kbely > prosek
33.47 20.24
prosek > kbely
35.17 31.85
MCS10
kbely > prosek
32.54 19.53
prosek > kbely
34.50 26.27
16dBm
AP -73dB Klient -79dB -88dB
nejde ani ping
20dBm
AP -69dB Klient -71dB -69dB
MCS12
kbely > prosek
29.82 18.27
prosek > kbely
41.93 28.65
23dBm
AP -67dB Klient -69dB -65dB
MCS12
kbely > prosek
41.38 25.41
prosek > kbely
50.48 38.32
MCS4
kbely > prosek
32.87 18.04
prosek > kbely
29.33 26.66

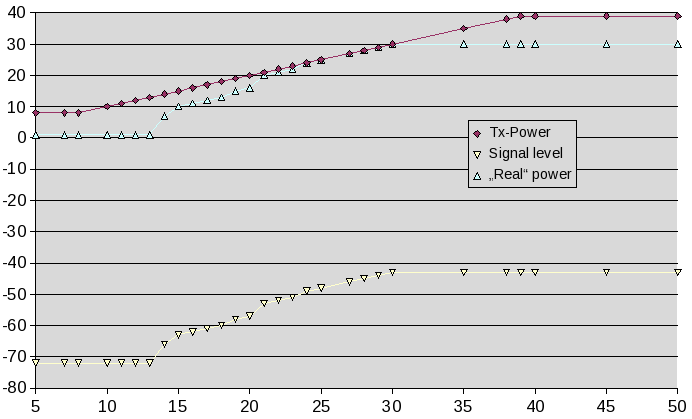

Úroveň přijímaného signálu v závislosti na nastavení výkonu protistrany
Pokud "měníme" výkon pomocí iwconfig ath0 txpower XX z konzole od 5 do 50, tak
výpis iwconfig ath0 na vysílači ukazuje něco od 8 do 39 a příjímací karta
ve výpisu iwconfig ath0 ukazuje signál od -72 do -43.
XX Tx-Power Signal level
50 39 -43
45 39 -43
40 39 -43
39 39 -43
38 38 -43
35 35 -43
30 30 -43
29 29 -44
28 28 -45
27 27 -46
25 25 -48
24 24 -49
23 23 -51
22 22 -52
21 21 -53
20 20 -57
19 19 -58
18 18 -60
17 17 -61
16 16 -62
15 15 -63
14 14 -66
13 13 -72
12 12 -72
11 11 -72
10 10 -72
8 8 -72
7 8 -72
5 8 -72
Je dobré mít na testování silné stroje protože MCS12 mezi dvěma PIV jede 45Mbit FD
kdežto mezi rockety je to jen 21Mbit FD
MCS12
PIV <> PIV
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.0 sec 325 MBytes 45.4 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-60.0 sec 365 MBytes 51.1 Mbits/sec
Rocket <> Rocket
[ ID] Interval Transfer Bandwidth
[ 7] 0.0-10.0 sec 25.5 MBytes 21.4 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 8] 0.0-10.0 sec 25.9 MBytes 21.7 Mbits/sec
MCS15
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.0 sec 434 MBytes 60.7 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-60.1 sec 478 MBytes 66.8 Mbits/sec
MCS14
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-10.0 sec 64.9 MBytes 54.3 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.0 sec 71.0 MBytes 59.6 Mbits/sec
MCS13
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-10.0 sec 69.3 MBytes 58.0 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.1 sec 75.4 MBytes 62.9 Mbits/sec
MCS12
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-30.0 sec 162 MBytes 45.3 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-30.0 sec 181 MBytes 50.6 Mbits/sec
MCS11
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.1 sec 76.4 MBytes 32.0 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 90.2 MBytes 37.7 Mbits/sec
MCS10
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 54.8 MBytes 23.0 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 68.2 MBytes 28.5 Mbits/sec
MCS9
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 34.3 MBytes 14.4 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 51.6 MBytes 21.5 Mbits/sec
MCS8
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 17.5 MBytes 7.32 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.3 sec 22.5 MBytes 9.27 Mbits/sec
MCS7
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.1 sec 84.3 MBytes 35.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 97.5 MBytes 40.8 Mbits/sec
MCS6
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 85.3 MBytes 35.7 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 101 MBytes 42.1 Mbits/sec
MCS5
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 75.5 MBytes 31.6 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 90.1 MBytes 37.7 Mbits/sec
MCS4
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 53.5 MBytes 22.4 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.0 sec 66.6 MBytes 28.0 Mbits/sec
MCS3
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 35.6 MBytes 14.9 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 50.0 MBytes 20.9 Mbits/sec
MCS2
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.2 sec 24.4 MBytes 10.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.2 sec 31.8 MBytes 13.2 Mbits/sec
MCS1
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 16.5 MBytes 6.91 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.3 sec 21.2 MBytes 8.75 Mbits/sec
MCS0
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.3 sec 8.04 MBytes 3.32 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.7 sec 13.7 MBytes 5.55 Mbits/sec
MCS12
27 50 50
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 107 MBytes 44.7 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 127 MBytes 52.8 Mbits/sec
24 47 45
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 106 MBytes 44.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 125 MBytes 52.3 Mbits/sec
21 43 40
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 92.8 MBytes 38.9 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 116 MBytes 48.6 Mbits/sec
18 37 35
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.1 sec 912 KBytes 372 Kbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-21.1 sec 2.82 MBytes 1.12 Mbits/sec
MCS10
18 38 35
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 22.6 MBytes 9.47 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.3 sec 5.04 MBytes 2.08 Mbits/sec
MCS9
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-20.0 sec 53.7 MBytes 22.5 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-20.1 sec 1.13 MBytes 472 Kbits/sec
Antény ubnt+jirous
MCS12
27 52 57
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-600.0 sec 3.64 GBytes 52.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-600.1 sec 3.13 GBytes 44.8 Mbits/sec
24 45 48
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.0 sec 62.2 MBytes 52.0 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-10.0 sec 54.0 MBytes 45.2 Mbits/sec
21 41 40
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.0 sec 52.7 MBytes 44.1 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-10.1 sec 45.0 MBytes 37.5 Mbits/sec
18 34 36
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.4 sec 416 KBytes 327 Kbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-26.1 sec 24.0 KBytes 7.54 Kbits/sec
MCS13
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.0 sec 68.4 MBytes 57.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-10.0 sec 46.3 MBytes 38.7 Mbits/sec
MCS14
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.0 sec 79.1 MBytes 66.3 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-10.0 sec 63.0 MBytes 52.8 Mbits/sec
MCS15
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-10.0 sec 76.6 MBytes 64.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-10.0 sec 70.4 MBytes 58.9 Mbits/sec

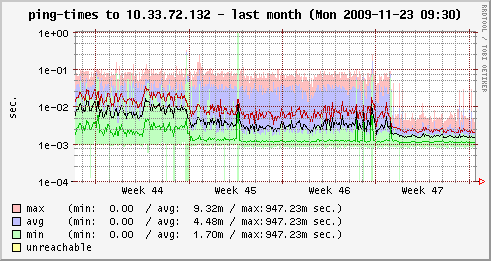

ACK Timeout: Automatické doladění
Je dobré vypnou automatické doladění. Spoj se nesnaží měnit své nastavení a
o dost se zestabilní jeho chod. Je to vidět na pingu, kde v
pondělí před půlnocí jsem automatiku na spoji kbely-prosek vypnul a graf pingu je od té
chvíle "čistší".
Rocket M5 s jedním chainem
Rocket má dva konektory a dva chainy, ale dá se provozovat jen s jedním. Pokud použijeme jen jeden, tak mají cenu jen MCS1 až MCS 7 jako
u Bulletu M5. Testy jsou na spoji s dvěma JRC-24 a vzdálenost 2km.
MCS1
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.44 18.33
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.44 20.93
MCS2
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.22 37.57
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.21 43.22
MCS3
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.26 38.21
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.17 42.76
MCS4
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.17 57.51
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
^[x^[zRecv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.14 60.10
MCS5
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.15 69.54
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.17 64.26
MCS6
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.09 70.97
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.46 38.76
MCS7
[root@bratrk ~]# netperf -H 10.33.10.130
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.130 (10.33.10.130) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.14 68.03
[root@sluknovska ~]# netperf -H 10.33.10.129
TCP STREAM TEST from 0.0.0.0 (0.0.0.0) port 0 AF_INET to 10.33.10.129 (10.33.10.129) port 0 AF_INET
Recv Send Send
Socket Socket Message Elapsed
Size Size Size Time Throughput
bytes bytes bytes secs. 10^6bits/sec
87380 16384 16384 10.17 34.66
